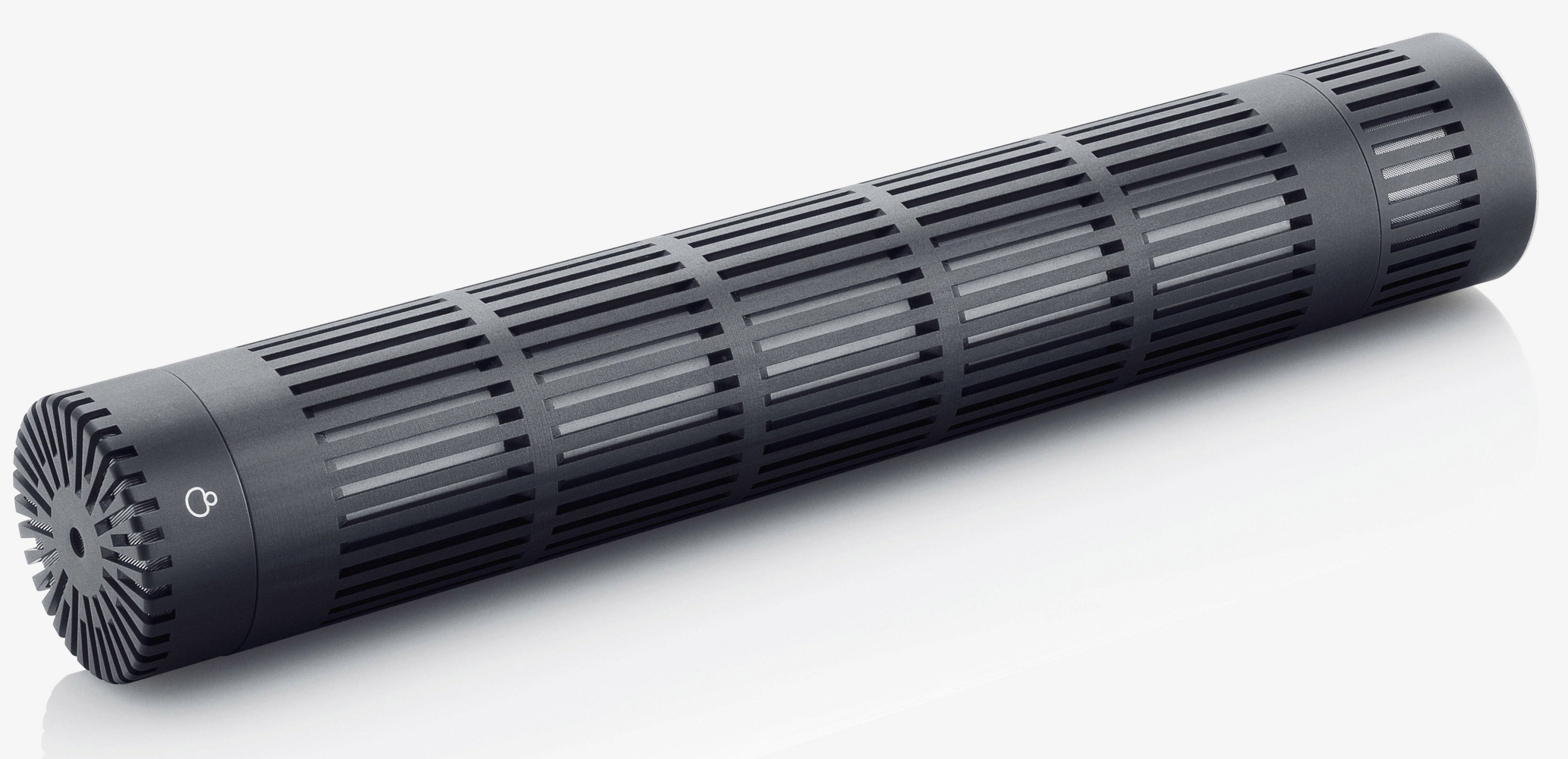

Конденсаторний вузькоспрямований капсуль. Сумісний з будь-яким підсилювачем серії DPA Reference Standard Directional pattern: Supercardioid, lobe-shaped Principle of operation: Pressure gradient, with interference tube Cartridge type: Pre-polarized condenser Frequency range: 20 Hz to 20 kHz Frequency range, ± 2 dB: 40 Hz to 20 kHz Sensitivity, nominal, ± 2 dB at 1 kHz: 19 mV / Pa; -34 dB re. 1 V / Pa Equivalent noise level, A-weighted: Typ. 14 dB (A) re. 20 ?Pa (max. 15 dB (A)) Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (max. 26 dB) S / N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 80 dB (A) Color: Matte black Weight: 30 g (1.1 oz) Diameter: 19 mm (0.75 in) Capsule size: 19 mm (0.75 in) Length: 113 mm (4.4 in) Temperature range: -40 ° C to 45 ° C (-40 ° F to 113 ° F) Relative Humidity (RH): Up to 90%
