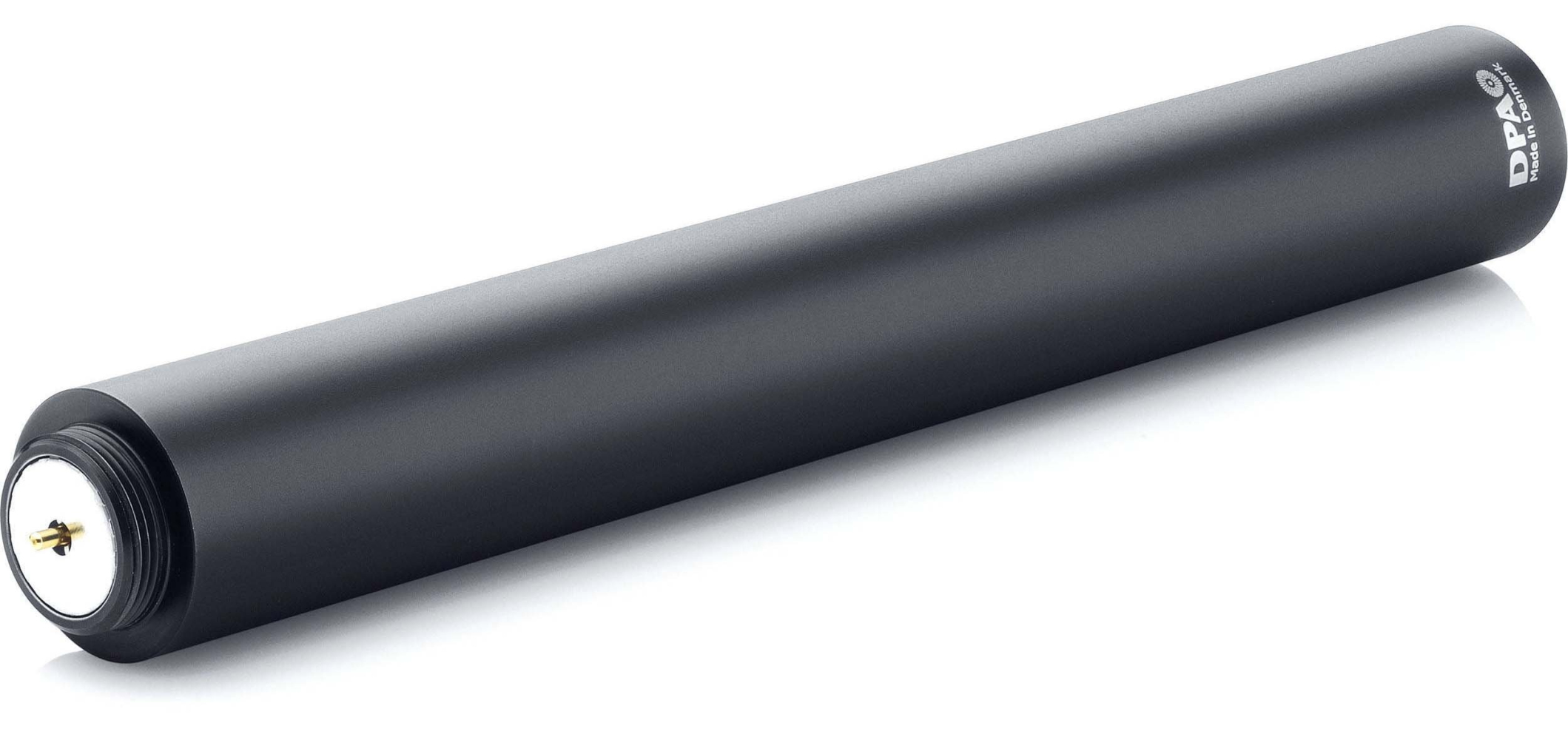

Безтрансформаторный симметричный предусилитель с ультра прозрачным звучанием. Совместим с любым капсулем серии DPA Reference Standard Output connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase Low-cut frequency, -3 dB: 8 Hz Noise with shorted input, A-weighted: 0.5 µV Output voltage, RMS: > 5 V Output voltage, peak: > 16 V Type of electronic circuit: Active THD@1VRMS, 1kHz: < 0.2 % Dynamic range: 138 dB Switchable attenuator: 0 dB, -20 dB Output impedance: < 200 ohm Output balance principle: Impedance balancing with Active Drive Common Mode Rejection Ratio (CMRR): > 60 dB Power supply (for full specifications): 48 V Phantom power (± 4 V) Current consumption: 2.8 mA Color: Matte black Weight: 140 g (4.9 oz) Diameter: 19 mm (0.75 in) Length: 147 mm (5.8 in) Cable drive capability: 100 m (328 ft) Temperature range: -40 °C to 45 °C (-40 °F to 113 °F) Relative Humidity (RH): Up to 90 %
Default
Вид мікрофона
Конденсаторні
Безтрансформаторный симметричный предусилитель с ультра прозрачным звучанием. Совместим с любым капсулем серии DPA Reference Standard Output connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase Low-cut frequency, -3 dB: 8 Hz Noise with shorted input, A-weighted: 0.5 µV Output voltage, RMS: > 5 V Output voltage, peak: > 16 V Type of electronic circuit: Active THD@1VRMS, 1kHz: < 0.2 % Dynamic range: 138 dB Switchable attenuator: 0 dB, -20 dB Output impedance: < 200 ohm Output balance principle: Impedance balancing with Active Drive Common Mode Rejection Ratio (CMRR): > 60 dB Power supply (for full specifications): 48 V Phantom power (± 4 V) Current consumption: 2.8 mA Color: Matte black Weight: 140 g (4.9 oz) Diameter: 19 mm (0.75 in) Length: 147 mm (5.8 in) Cable drive capability: 100 m (328 ft) Temperature range: -40 °C to 45 °C (-40 °F to 113 °F) Relative Humidity (RH): Up to 90 %
